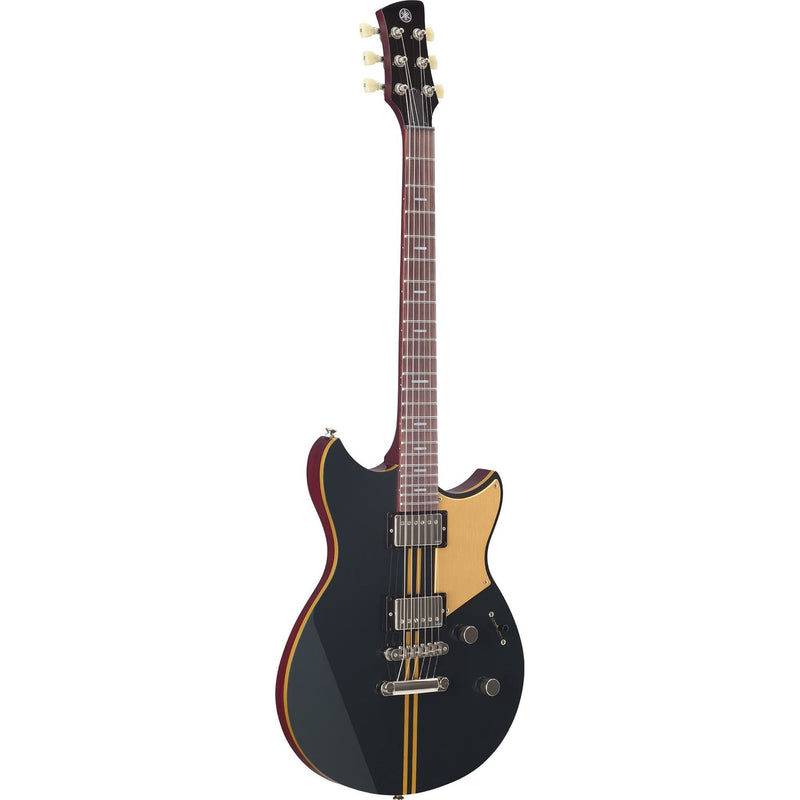

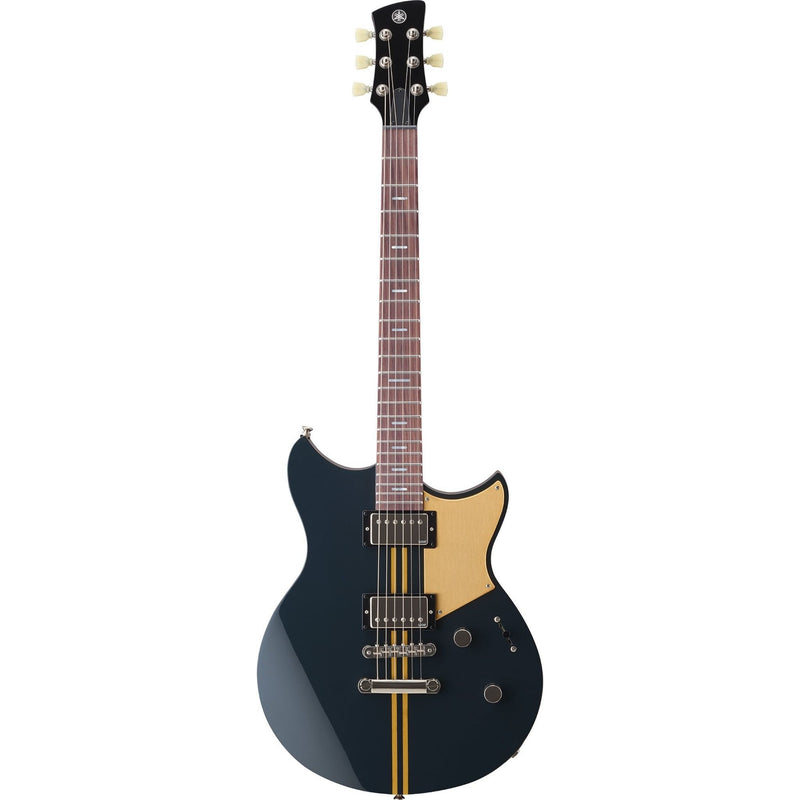

The RSP20X is a cosmetic variation of the RSP20 with body binding painted to match the gold racing stripes, and a striking anodised aluminium scratchplate. This Revstar electric guitar features a humbucker pickup custom-designed by Yamaha and uses Alnico V magnets for powerful tone.
Crafted to the highest standards by master luthiers in Japan, Revstar Professional guitars represent the pinnacle of the new Revstar series.
Revstar Professional guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the body and neck to improve vibration transfer. Positions 2 and 4 of the 5-way switching control slightly delay the opposite pickup for a subtle phase shift that offers a fresh take on classic “in-between” sounds. The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.
Features
-
RSP20X:
Style: Revstar Professional Solid Body Electric Guitar
Top Wood: Maple
Back Wood: Chambered 2-Piece Mahogany, Carbon Reinforcement
Finish: Gloss Polyurethane
Neck Pickup: VH5n: Humbucker / Alnico V
Bridge Pickup: VH5b: Humbucker / Alnico V
Case: Hardshell Case Included
Made in Japan
- Chambered maple and mahogany body
- Carbon-reinforced neck and body
- 2 humbucking pickups
- 5-Position pickup selector
- Passive Focus Switch
- Hardshell case included
| Construction | Set-in |
|---|---|
| Scale Length | 628.6mm (24 3/4") |
| Body Materials | Top: Maple Back: Chambered 2-Piece Mahogany, Carbon Reinforcement |
| Body Finish | Gloss Polyurethane |
| Neck Materials | 3-Piece Mahogany, Carbon Reinforcement |
| Neck Finish | Satin Polyurethane |
| Fingerboard Materials | Rosewood |
| Fingerboard Radius | 304.8mm (12") |
| Fret wire | Jumbo Stainless Steel |
| Number of frets | 22 |
| Nut materials | PPS |
| Neck Width at 0 Fret / 12th Fret | 41.9 / 52mm |
| Thickness at 1st Fret / 12th Fret | 21 / 23.9mm |
| Neck Pickup | VH5n: Humbucker / Alnico V |
| Bridge Pickup | VH5b: Humbucker / Alnico V |
| Controls | Master Volume, Master Tone (Push-Pull "Focus Switch") |
| Pickup Switch | 5-Position Lever Switch |
| Bridge | Tune-O-Matic |
| String Spacing | 10.5mm |
| Tailpiece | Stopbar |
| Tuning Machines | Die-Cast |
| Pickguard | Anodised Aluminium (Satin Gold) |
| String gauge | D'Addario EXL110 / 0.010-0.046 |
| Case | Hardshell case |
| Special Features | I.R.A. Treatment |
Due to ongoing product development efforts, specifications are subject to change without notice.
