Features
-
ES920:
IMPROVED: Responsive Hammer III keyboard action with redesigned key switches
IMPROVED: Improved acoustic piano sounds and updated Virtual Technician parameters
IMPROVED: Enhanced Touch Curve setting with 10 selectable touch presets
NEW: Electric Piano, Drawbar and Jazz Organ, Electric Bass, Harpsichord, and Strings sounds
NEW: Motherboard developed in partnership with Onkyo for improved tonal clarity
NEW: Updated control panel with 4-band EQ faders and modern OLED graphic display
NEW: Support for latest PianoRemote control app for iOS/Android
NEW: Bluetooth MIDI and Audio functionality with aptX support for wireless audio playback
NEW: Stylish rounded case design and lightweight chassis weighing 17 kg

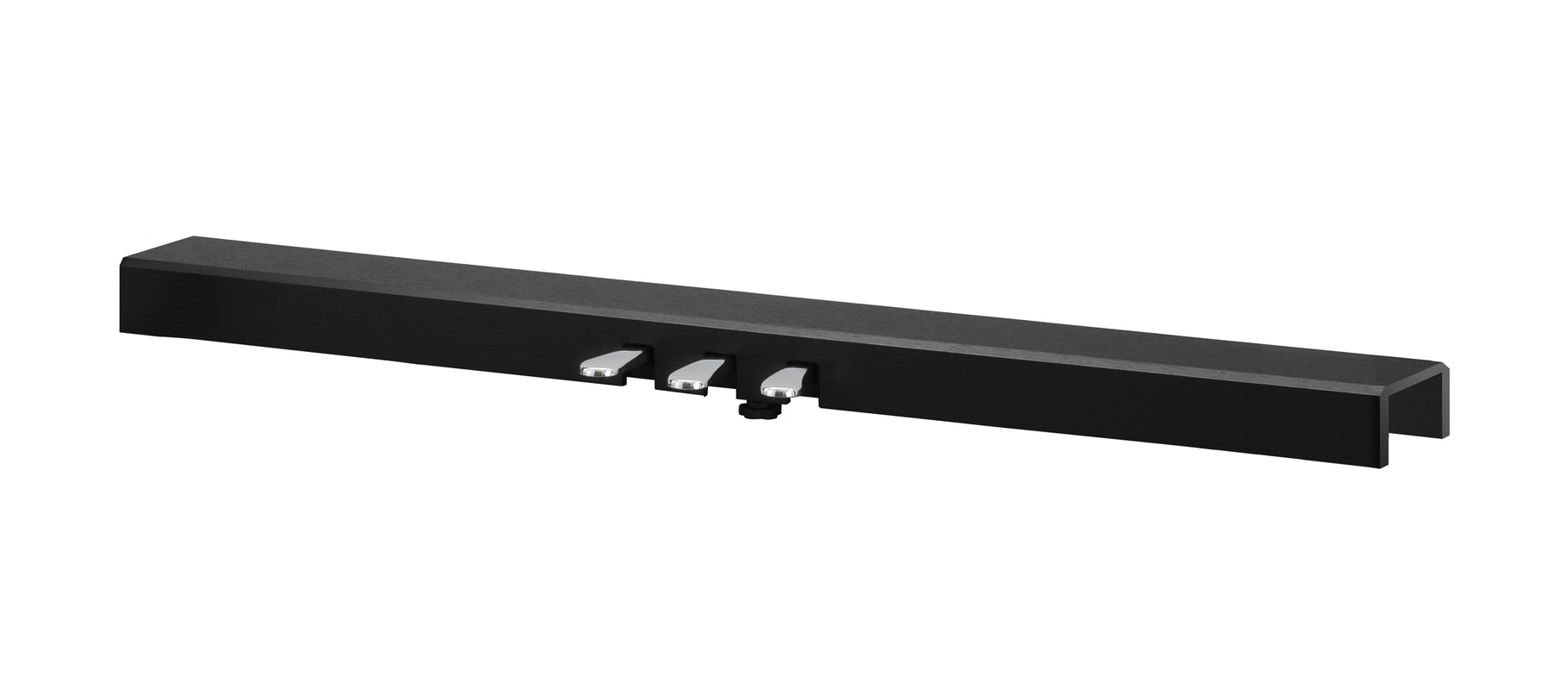

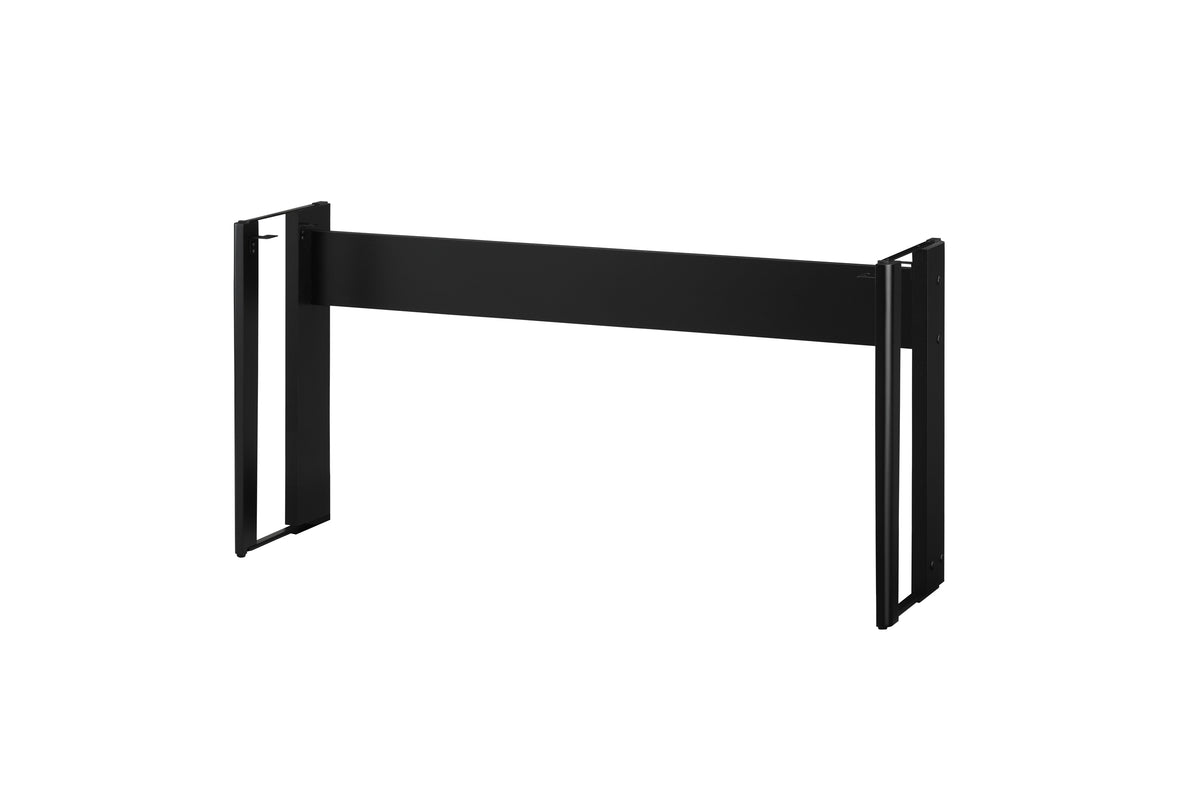

NEW: Modern HM-5 designer stand and F-302 triple pedal bar, support for GFP-3 triple pedal unit (AVAILABLE SEPARATELY)
ES Series
| Keyboard | Responsive Hammer III (RHIII) action with Let-Off 88 weighted keys with Ivory Touch key surfaces |
|---|---|
| Sound Source | Harmonic ImagingTM XL (HI-XL), 88-key piano sampling |
| Internal Sound | 38 sounds (PIANO x 10, E.PIANO x 6, ORGAN x 5, HARPSI/MALLETS x 4, STRINGS/CHOIR x 8, BASS x 5) |
| Polyphony | max. 256 notes |
| Keyboard Modes | Dual Mode, Split Mode, Four Hands Mode (Volume/Balance adjustable) |
| Reverb | Type: Room, Lounge, Small Hall, Concert Hall, Live Hall, Cathedral
Parameters: Reverb Depth, Reverb Time |
| Effects | Type: Mono Delay, Ping Delay, Triple Delay, Chorus, Classic Chorus, Ensemble, Tremolo, Classic Tremolo, Vibrato Tremolo, Auto Pan, Classic Auto Pan, Phaser, Classic Phaser, Compres
Parameters: Dry/Wet, Time, Speed, Feedback, HighDamp, Depth – Parameters dependent on effect. |
| Amp Simulator | Type: S.Case I, S.Case II, L.Cabinet
Parameters: Drive, Level, EQ Low, EQ High |
| Virtual Technician | Touch Curve: Light 1/2/3/4, Normal, Heavy 1/2/3/4, Off (Constant), User Touch Curve
Voicing: Normal, Mellow 1, Mellow 2 , Dynamic, Bright 1, Bright 2, User Voicing Resonance, Noise & Effects: Damper Resonance, Damper Noise, String Resonance, Undamped String Resonance, Cabinet Resonance, Key-off Effect, Fall-back Noise, Hammer Noise, Topboard Simulation, Decay Time, Release Time Temperament & Tuning: Equal, Pure Major, Pure Minor, Pythagorean, Meantone, Werckmeister, Kirnberger, User Temperament, Temperament Key, Stretch Tuning, User Tuning Others: Hammer Delay, Minimum Touch, User Key Volume, Half-Pedal Adjust, Soft Pedal Depth |
| Internal Recorder | 10 song, 2 track recorder – approximately 90,000 note memory capacity |
| USB Functions | Playback: MP3, WAV, SMF
Record: MP3, WAV Others: Overdubbing, Convert Song to Audio, Load Internal Song, Save Internal Song, Save SMF Song, Load Registration, Save Registration, Load Startup Setting, Save Startup Setting, Rename File, Delete File, Format USB |
| Metronome | 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8 (Volume/Tempo adjustable) |
| Rhythm Section | Styles: 100 rhythms (x 2 variations), 4-part accompaniment, 100 preset chord sequences
Settings: Rhythm Volume, Auto Fill-in, One Finger Ad-lib, ACC Mode, Preset Chord, Rhythm Parts Select |
| Demo Songs | Main demo song, Rhythm Section demo song, 25 sound demo songs |
| Registrations | 28 memories (7 x 4) |
| Other Settings & Functions | Key/Song Transpose, Tone Control (incl. Brilliance, UserEQ), Wall EQ, Speaker Volume, Low Volume Balance, Phones Volume, Line Out Volume, Audio Recorder Gain, Tuning, Damper Hold, GFP-3 Mode, Four Hands, Startup Setting, Factory Reset, Auto Power Off, Auto Display Off, Lower Octave Shift, Lower Pedal On/Off, Split Balance, Layer Octave Shift, Layer Dynamics, Dual Balance, SHS Mode, Phones Type, MIDI Channel, Send PGM#, Local Control, Transmit PGM#, Multi-timbral Mode, Channel Mute, Bluetooth Audio, Bluetooth Audio Volume, Bluetooth MIDI, Speakers On/Off |
| Display | 128 x 64 pixel OLED |
| Pedal | F-10H damper pedal (with half-pedal support |
| Bluetooth | Bluetooth (Ver. 4.1; GATT compatible) Bluetooth Low Energy MIDI Specification compliant, Bluetooth Audio |
| Connectors | LINE IN (1/8″ STEREO), LINE OUT (1/4″ L/MONO, R [unbalanced]), Headphones x 2 (1/4”, 1/8”), MIDI (IN/OUT), USB to Host, USB to Device, DAMPER (for F-10H), DAMPER/SOFT/SOSTENUTO (for GFP-3/F-302) |
| Speaker System | Speakers: (8x12cm) x 2
Output Power: 20W x 2 |
| Power Consumption | 18 W (PS-154 AC adaptor) |
| Dimensions (Not including music rest) | 1340 (W) x 375 (D) x 145 (H) mm 523/4″ (W )x 142/3″ (D) x 52/3″ (H) |
| Weight | 17.0 kg / 37.5 lbs. |
* Availability of Bluetooth function dependent on market location.
Specifications are subject to change without notice.
